Future Development Trends of Smart Lifting Columns

1. Integration of Intelligence and the Internet of Things

With the in-depth empowerment of Internet of Things (iot) technology, future intelligent bollards will achieve a leap from execution to intelligent decision-making. Through data interaction with environmental sensors, office equipment and user terminals, it can make adaptive adjustments (such as automatically switching heights according to work schedules), and provide users with health suggestions for optimizing their working methods based on data insights.

2. Lightweighting and Material Innovation

With the use of lightweight, high-strength materials such as aluminum alloys and composite materials, lift columns will further reduce weight, lower energy consumption, and improve mobility while maintaining load capacity. 3. Growing Demand for Personalization and Customization

Users' requirements for the functionality and appearance of smart office lift desk legs are becoming increasingly diverse. Designs that support multi-level travel, multiple colors, and flexible adaptation to different desktops will become mainstream.

Product Advantages of Huagang Intelligent Lifting Columns

SPECIFICATION SHEET
Item	AL-S-2	BL-S-2	CL-S-2	DL-S-2
PIC
Drive type	Electric	Electric	Electric	Electric

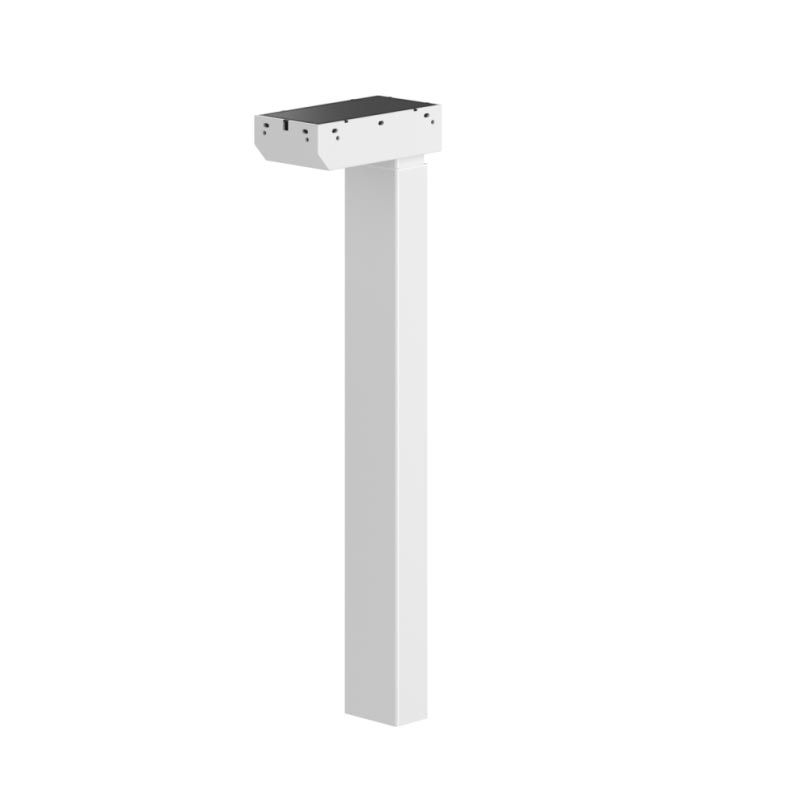

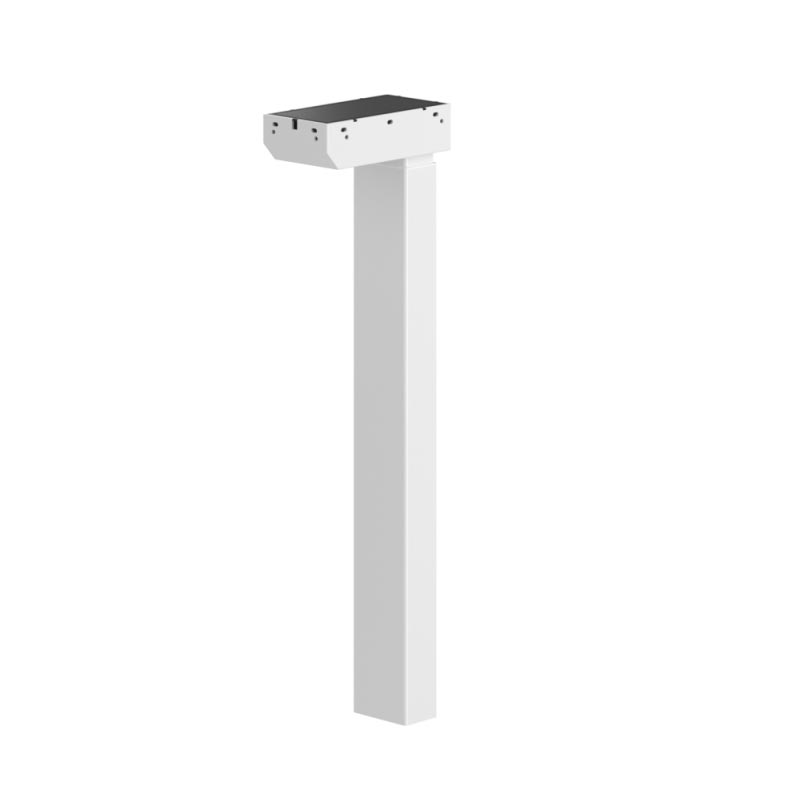

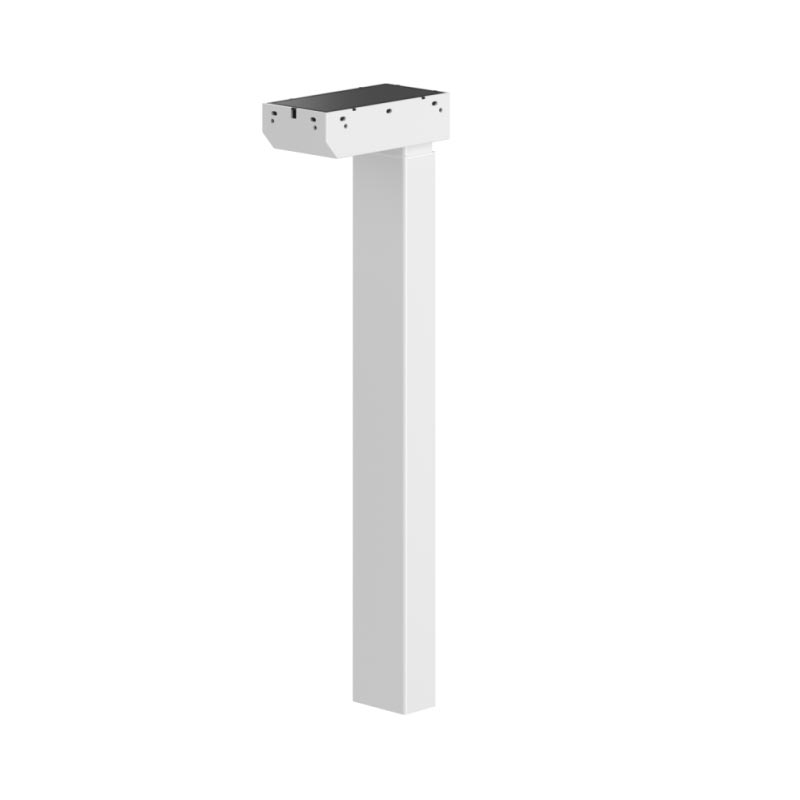

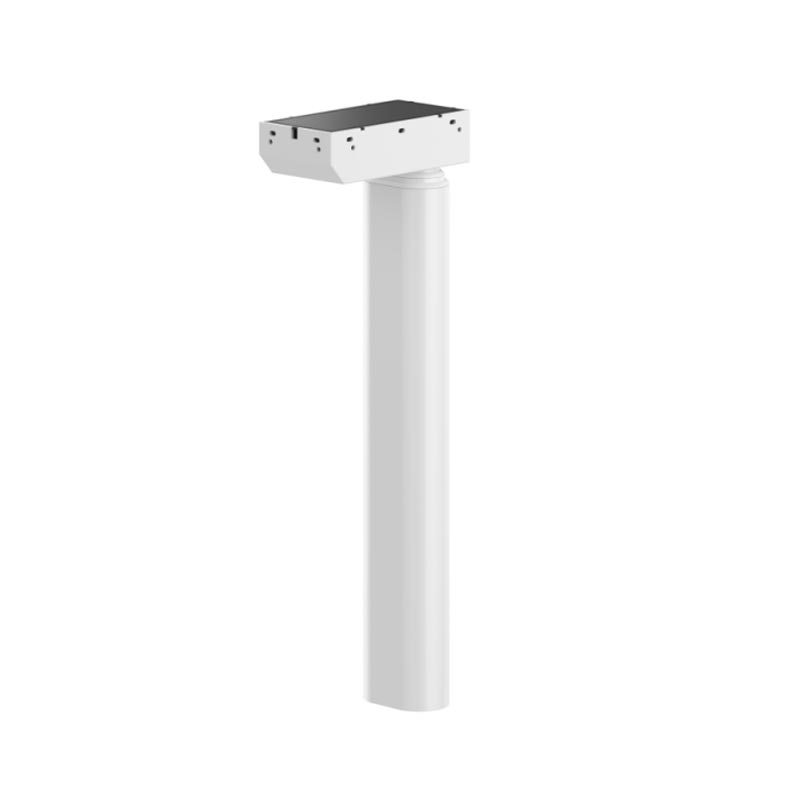

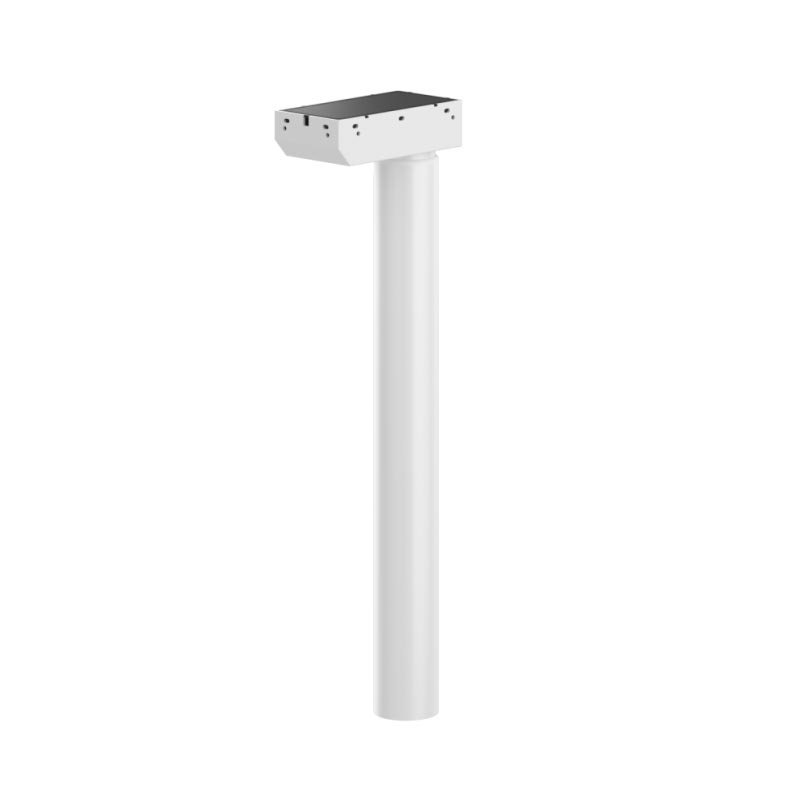

Lifting column	Rectangular pipe formal 2 sections	Square pipe formal 2 sections	Round pipe formal 2 sections	Oval pipe formal 2 sections
Tube diameter	80*50mm	70*70mm	φ70mm	91*57mm
Integrated socket	N/A	N/A	N/A	N/A
Load	80KG	80KG	80KG	80KG
Speed	32mm/s	32mm/s	32mm/s	32mm/s
Noise	≤50dB	≤50dB	≤50dB	≤50dB
Voltage	100-240V	100-240V	100-240V	100-240V
Installation Height	650mm	650mm	650mm	650mm
Adjustable height	500mm	500mm	500mm	500mm
Color	Gray, white, black	Gray, white, black	Gray, white, black	Gray, white, black

SPECIFICATION SHEET
Item	AL-S-3	BL-S-3	CL-S-3	DL-S-3
PIC
Drive type	Electric	Electric	Electric	Electric
Lifting column	Rectangular pipe formal 3 sections	Square pipe formal 3 sections	Round pipe formal 3 sections	Oval pipe formal 3 sections
Tube diameter	80*50mm	70*70mm	φ70mm	91*57mm
Integrated socket	N/A	N/A	N/A	N/A
Load	80KG	80KG	80KG	80KG
Speed	40mm/s	40mm/s	40mm/s	40mm/s
Noise	≤50dB	≤50dB	≤50dB	≤50dB
Voltage	100-240V	100-240V	100-240V	100-240V
Installation Height	560mm	560mm	560mm	560mm
Adjustable height	680mm	680mm	680mm	680mm
Color	Gray, white, black	Gray, white, black	Gray, white, black	Gray, white, black

1. Structural Design and Performance Optimization

Huagang's intelligent lifting columns utilize a two- or three-stage tube design, achieving a longer travel range (up to 500mm) with a shorter installation distance, fully meeting the personalized needs of different users for desk height. Their simple and attractive appearance, compatible with a variety of standard colors and frames, allows them to easily blend into any office environment.

2. Quiet Operation and Stability

Huagang smart office adjusdesk desk legs height-adjustable desk legs are dedicated to providing a quiet and smooth lifting experience. The optimized motor and structure reduce the operating noise to an extremely low level. Meanwhile, the powerful self-locking function keeps the desktop motionless even when fully loaded, creating a disturbance-free and focused space for you.

3. Safety and Intelligent Features

Huagang's products feature an integrated retraction function (anti-collision protection), which automatically stops or retracts upon encountering an obstacle, significantly reducing operational risks. The controller also supports high-level memory, multi-device synchronization, and wireless remote operation, enhancing user experience and device reliability.

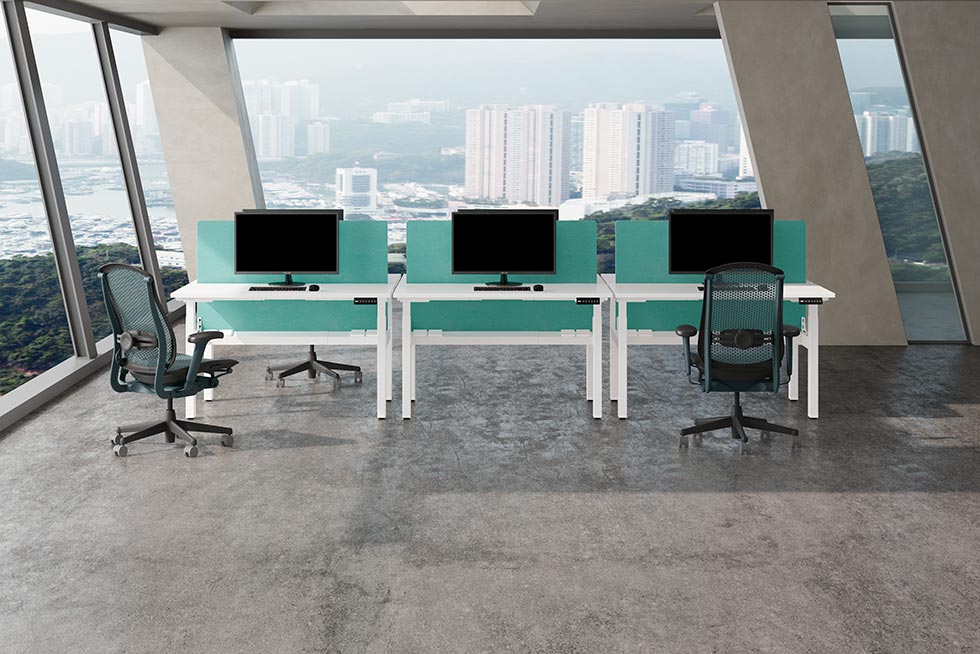

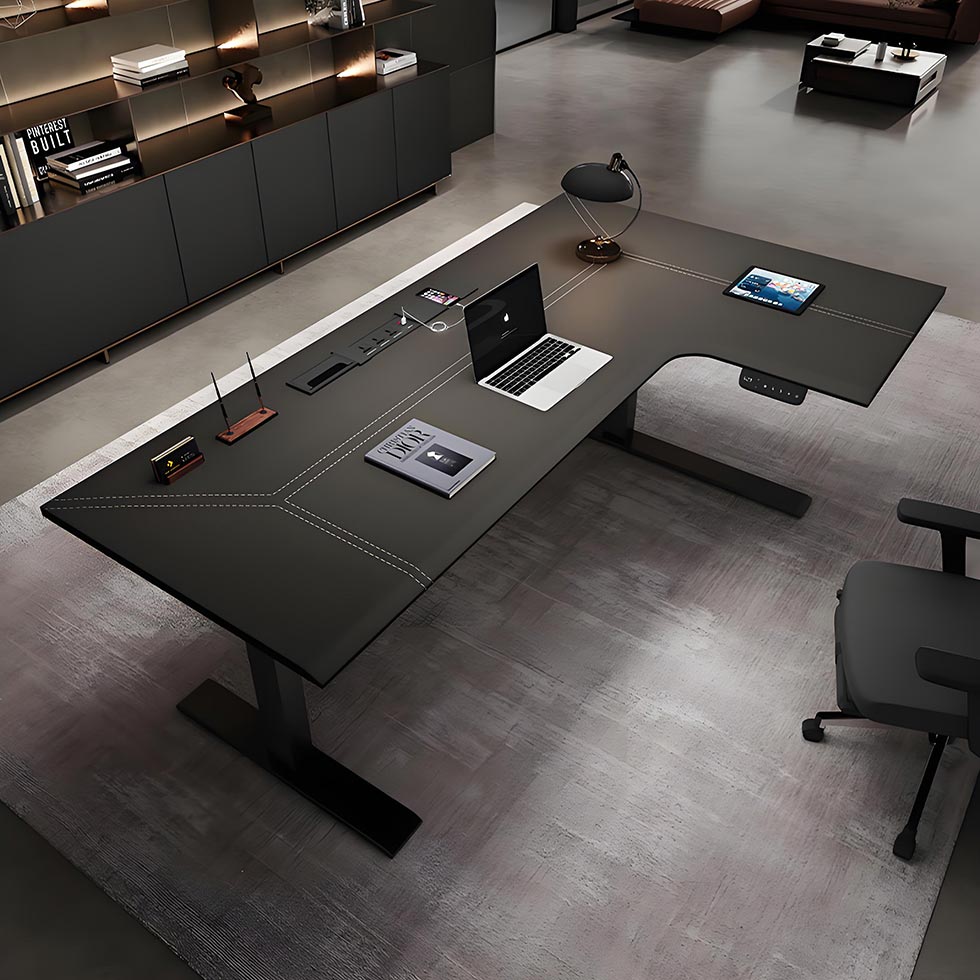

Application Scenarios and Future Outlook

In the future, Huagang will deepen its cooperation with the intelligent ecosystem, integrating functions such as voice control and AI learning, with the aim of making the intelligent guardrail the core node of smart office. This vision is based on the solid foundation that the current product has successfully expanded from desks to multi-functional scenarios such as meetings, training, and gaming, and continuously enhances health and efficiency through flexible adjustment. At the same time, we have always adhered to the concept of sustainable development and actively promoted the practice of green office through low-power design, long-life motors and recyclable materials.
